E1 — ISIC 2017 UNet2D Architecture Sweep Summary (all Learning Rates)

Question. Across a full 3×3 grid of encoder × merge architectures swept over four learning rates, which (architecture, LR) pair produces the best ISIC 2017 segmentation model — and is the best-performing LR the same for every architecture?

Design. 36 single-seed runs: a 3×3 grid of encoder (classical, se, he2) × merge (he2, attention_gate, classical), each trained at four fixed learning rates (1e-4, 3e-4, 6e-4, 1e-3) — 9 architectures × 4 LRs. The performance metric is the Dice coefficient at threshold 0.5 on the ISIC 2017 validation set. This is a joint architecture × LR sweep: every architecture is evaluated at all four LRs, so the analysis selects both the architecture and its accompanying LR. This notebook aggregates across the four per-LR experiments to compare architectures within and across LRs and to read off the best LR for each.

Source. Four MLflow databases under mlruns/, one per LR — E1-isic2017-unet2d-model-lr-1seed.db (3e-4), …-modelsw-lr_6e-4-1seed.db, …-lr_1e-3-1seed.db, …-lr_1e-4-1seed.db — 36 runs (9 architectures × 4 LRs), all FINISHED. Each per-LR notebook (E1_isic2017_unet2d_modelsw_lr_*_1seed_analysis.ipynb) holds the full run-level breakdown.

Executive summary

• Screen: 3×3 encoder × merge grid for 4 LRs ({1e-4, 3e-4, 6e-4, 1e-3}), 36 single-seed runs; metric = val Dice @ 0.5

• Selection criterion: highest tail-mean (last-10-epoch) Dice, tie-broken on cross-LR std, overfitting gap and throughput (§2)

Criterion (at lr=3e-4)	classical+he2	classical+attention_gate
Peak Dice	0.8427	0.8412
Tail-mean Dice	0.8259	0.8265
Mean tail-Dice across 4 LRs	0.8205	0.8211
Std across 4 LRs	0.0039	0.0056
Overfitting gap	0.078	0.084
Throughput (sps)	140	123

Findings:

• lr=3e-4 is the best LR for the recommended classical architectures and the modal winner overall (best plateau LR for 6 of 9 architectures); 3 architectures peak elsewhere (1e-3 or 6e-4), so the optimal LR is not uniform across the grid

• classical is the top encoder at every LR (+0.010–0.016 over se);

• he2 and attention_gate merges tie within single-seed noise (Δ 0.0006); classical merge lags and is eliminated

• he2 wins every cost/reliability axis: 14 % faster, lower overfitting, lower cross-LR std

Decision: ``classical`` encoder + ``he2`` merge at ``lr=3e-4``. The he2/attention_gate tie-break is resolved at multi-seed in E2.

1. Data

Load and concatenate the four per-LR MLflow databases into a single sweep table (all_runs), one row per run, tagged with its learning rate. summarize_runs reduces each run to peak / tail-plateau / final metrics; load_sweep_runs stacks the four experiments and adds the lr column the cross-LR helpers pivot on.

# ── Imports ──────────────────────────────────────────────────────────────────
import sys
from pathlib import Path

PROJECT_ROOT = Path('/teamspace/studios/this_studio/repos/SkiNet')
sys.path.insert(0, str(PROJECT_ROOT))

import pandas as pd

from SkiNet.Utils.analysis.lr_sweep import (
    load_sweep_runs,
    best_run_per_group,
    rank_all_runs,
    pivot_dim_effect,
    arch_consistency,
)
from SkiNet.Utils.analysis.plotting import plot_group_bar, plot_sweep_facet

# ── Configuration — every tunable argument lives in this cell ────────────────
MLRUNS  = PROJECT_ROOT / 'mlruns'  # directory holding the per-LR MLflow databases
MONITOR = 'val_dice'               # validation metric summarised per run

# group label (learning rate) → (db_filename, mlflow_experiment_name)
EXPERIMENTS = {
    '3e-4': ('E1-isic2017-unet2d-model-lr-1seed.db',        'E1-isic2017-unet2d-model-lr-1seed'),
    '6e-4': ('E1-isic2017-unet2d-modelsw-lr_6e-4-1seed.db', 'E1-isic2017-unet2d-modelsw-lr_6e-4-1seed'),
    '1e-3': ('E1-isic2017-unet2d-modelsw-lr_1e-3-1seed.db', 'E1-isic2017-unet2d-modelsw-lr_1e-3-1seed'),
    '1e-4': ('E1-isic2017-unet2d-modelsw-lr_1e-4-1seed.db', 'E1-isic2017-unet2d-modelsw-lr_1e-4-1seed'),
}
LR_ORDER = ['1e-4', '3e-4', '6e-4', '1e-3']  # canonical LR ordering for tables and facets

# ── Presentation ─────────────────────────────────────────────────────────────
pd.set_option('display.max_columns', 80)
pd.set_option('display.width', 200)
pd.set_option('display.float_format', '{:.4f}'.format)

# ── Load: 36 runs = 9 architectures × 4 learning rates ───────────────────────
all_runs = load_sweep_runs(EXPERIMENTS, MLRUNS, group_by='lr', monitor=MONITOR)
f"Loaded {len(all_runs)} runs across {all_runs['lr'].nunique()} LRs: {sorted(all_runs['lr'].unique())}"

"Loaded 36 runs across 4 LRs: ['1e-3', '1e-4', '3e-4', '6e-4']"

2. Selection methodology

2.1 Primary ranking metric

At one seed, runs are ranked on ``val_dice_tail_mean`` — the mean validation Dice (threshold 0.5) over the last 10 epochs, i.e. the stable plateau — rather than the single best epoch (val_dice_max). Peak Dice is retained as a secondary, reported column.

2.2 Selection rules

The architecture is selected in two passes over the 9 encoder × merge combinations:

#	Criterion	Operational definition
1	Best plateau Dice	Highest val_dice_tail_mean at the best LR, evaluated per encoder and per merge family (§3.4–3.5) and per full architecture (§3.6)
2	Cross-LR robustness	Lowest std of val_dice_tail_mean across the 4 LRs — prefers architectures that do not depend on LR tuning (§3.6)

When two architectures are tied on plateau Dice within single-seed noise (Δ ≲ 0.001), the decision falls to the secondary cost/reliability axes:

Tie-break axis	Column	Preference
Generalisation	generalization_gap_final (train_dice − val_dice)	lower
Stability from peak	drop_peak_to_final (val_dice_max − final_val_dice)	lower
Throughput	samples_per_sec	higher

2.3 Why a single seed is sufficient here

E1 is a combined architecture-learning rate screen: its job is to eliminate clearly inferior combinations and surface the one or two finalists. Resolving a remaining tie-break requires the paired multi-seed design, which is carried out in E2.

3. Results

3.1 Best run per LR

Top-ranked run at each learning rate (by val_dice_tail_mean) with key secondary metrics — the per-LR champions feeding the cross-LR comparison.

best_run_per_group(all_runs)

	lr	encoder	merge	val_dice_tail_mean	val_dice_max	val_dice_max_epoch	generalization_gap_final	samples_per_sec
0	3e-4	classical	attention_gate	0.8265	0.8412	74	0.084	123.2
1	6e-4	classical	attention_gate	0.8252	0.8375	99	0.098	114.2
2	1e-3	classical	classical	0.8213	0.8306	92	0.081	158.9
3	1e-4	classical	he2	0.8188	0.8273	97	0.091	128.0

3.2 All 36 runs ranked

Full cross-LR ranking sorted by val_dice_tail_mean (stable-plateau Dice). Columns:

column	what it measures
val_dice_max	Single best-epoch Dice at fixed threshold 0.5 — the peak this run reached
val_dice_tail_mean	Mean Dice over last 10 epochs — the stable plateau
val_dice_tail_std	Std over the same tail window — convergence noise
val_dice_max_epoch	Epoch at which the peak occurred
gen_gap	train_dice − val_dice at the final epoch — overfitting signal
drop	val_dice_max − final_val_dice — how much the run fell from peak to last epoch

rank_all_runs(all_runs)

	lr	encoder	merge	val_dice_max	val_dice_tail_mean	tail_std	epoch	gen_gap	drop	samples_per_sec
0	3e-4	classical	attention_gate	0.8412	0.8265	0.0107	74	0.084	0.019	123.2
1	3e-4	classical	he2	0.8427	0.8259	0.0109	97	0.078	0.017	140.3
2	6e-4	classical	attention_gate	0.8375	0.8252	0.0114	99	0.098	0.032	114.2
3	1e-3	classical	classical	0.8306	0.8213	0.0085	92	0.081	0.012	158.9
4	6e-4	classical	he2	0.8334	0.8206	0.0078	97	0.082	0.011	131.9
5	1e-4	classical	he2	0.8273	0.8188	0.0058	97	0.091	0.018	128.0
6	1e-3	classical	attention_gate	0.8277	0.8178	0.0068	88	0.082	0.008	116.6
7	1e-3	classical	he2	0.8320	0.8168	0.0092	92	0.077	0.009	138.3
8	3e-4	classical	classical	0.8299	0.8165	0.0107	84	0.090	0.014	157.3
9	6e-4	classical	classical	0.8319	0.8153	0.0106	99	0.094	0.021	157.1
10	1e-4	classical	attention_gate	0.8302	0.8149	0.0082	87	0.102	0.033	117.6
11	3e-4	se	classical	0.8307	0.8128	0.0123	99	0.095	0.030	144.5
12	3e-4	he2	attention_gate	0.8256	0.8124	0.0071	99	0.092	0.023	117.2
13	1e-3	he2	he2	0.8240	0.8119	0.0079	92	0.075	0.003	136.6
14	3e-4	he2	he2	0.8222	0.8115	0.0076	99	0.078	0.011	136.8
15	1e-4	se	classical	0.8248	0.8102	0.0071	92	0.083	0.013	134.5
16	6e-4	se	he2	0.8323	0.8095	0.0091	70	0.078	0.017	125.1
17	3e-4	he2	classical	0.8238	0.8083	0.0093	99	0.087	0.019	145.0
18	3e-4	se	he2	0.8243	0.8083	0.0115	91	0.089	0.018	129.5
19	6e-4	se	classical	0.8240	0.8077	0.0109	70	0.091	0.021	136.4
20	6e-4	he2	attention_gate	0.8225	0.8072	0.0098	99	0.092	0.020	114.7
21	1e-4	classical	classical	0.8178	0.8069	0.0060	84	0.100	0.018	148.7
22	6e-4	he2	classical	0.8191	0.8065	0.0108	99	0.074	0.003	136.7
23	6e-4	he2	he2	0.8248	0.8059	0.0122	84	0.080	0.014	129.1
24	3e-4	se	attention_gate	0.8195	0.8056	0.0094	83	0.087	0.010	114.8
25	6e-4	se	attention_gate	0.8254	0.8049	0.0104	87	0.088	0.020	114.5
26	1e-3	se	attention_gate	0.8250	0.8044	0.0156	99	0.095	0.028	111.1
27	1e-4	he2	attention_gate	0.8169	0.8035	0.0080	99	0.094	0.023	114.7
28	1e-3	he2	attention_gate	0.8165	0.8030	0.0104	93	0.096	0.019	115.2
29	1e-4	se	he2	0.8277	0.8025	0.0099	70	0.097	0.028	120.4
30	1e-4	he2	he2	0.8184	0.8018	0.0086	99	0.086	0.020	129.8
31	1e-3	se	he2	0.8183	0.8016	0.0150	70	0.075	0.006	128.3
32	1e-3	se	classical	0.8164	0.8011	0.0073	70	0.093	0.019	139.3
33	1e-4	he2	classical	0.8176	0.8008	0.0091	99	0.090	0.021	105.2
34	1e-3	he2	classical	0.8111	0.8008	0.0074	84	0.085	0.006	140.3
35	1e-4	se	attention_gate	0.8133	0.7982	0.0119	92	0.116	0.033	109.0

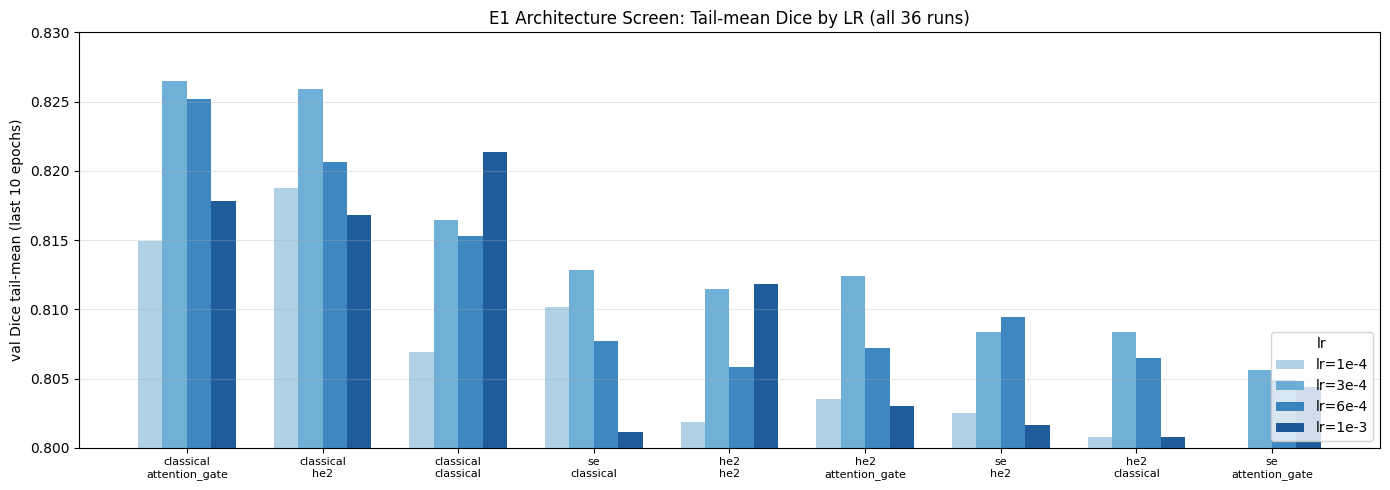

3.3 LR comparison — tail-mean Dice per architecture

Bar chart of tail-mean (plateau) Dice per architecture, grouped by LR, to visualise the LR effect on each combination.

plot_group_bar(
    all_runs,
    group_col='lr',
    group_order=LR_ORDER,
    value_col='val_dice_tail_mean',
    title='E1 Architecture Screen: Tail-mean Dice by LR (all 36 runs)',
    ylabel='val Dice tail-mean (last 10 epochs)',
    ylim=(0.800, 0.830),
)

3.4 Encoder family effect by LR

Mean tail-mean (plateau) Dice per encoder family at each LR (averaged over the 3 merge modes).

pivot_dim_effect(
    all_runs, 'encoder',
    group_order=LR_ORDER,
    dim_order=['classical', 'se', 'he2'],
)

	classical		se		he2
	mean	std	mean	std	mean	std
lr
1e-4	0.8135	0.0060	0.8036	0.0061	0.8021	0.0014
3e-4	0.8230	0.0056	0.8089	0.0037	0.8107	0.0021
6e-4	0.8204	0.0049	0.8074	0.0023	0.8065	0.0007
1e-3	0.8187	0.0024	0.8024	0.0017	0.8052	0.0059

3.5 Merge family effect by LR

Mean tail-mean (plateau) Dice per merge family at each LR (averaged over the 3 encoder modes).

pivot_dim_effect(
    all_runs, 'merge',
    group_order=LR_ORDER,
    dim_order=['he2', 'attention_gate', 'classical'],
)

	he2		attention_gate		classical
	mean	std	mean	std	mean	std
lr
1e-4	0.8077	0.0096	0.8056	0.0086	0.8060	0.0048
3e-4	0.8152	0.0094	0.8148	0.0107	0.8125	0.0041
6e-4	0.8120	0.0077	0.8124	0.0111	0.8098	0.0048
1e-3	0.8101	0.0077	0.8084	0.0082	0.8077	0.0118

3.6 Architecture consistency across LRs

Aggregated across all 4 LRs, each architecture’s mean / std / min / max tail-mean Dice (the metric arch_consistency ranks on). Low std means the architecture is robust to LR choice; high std means it benefits from LR tuning.

Key finding: the two classical-encoder architectures lead and are separated by noise. classical+attention_gate has the highest mean (0.8211) but the larger cross-LR spread (std 0.0056); classical+he2 trails by 0.0006 on the mean (0.8205) while being the more stable of the two (std 0.0039). attention_gate’s edge is driven mainly by its result at lr=3e-4.

arch_consistency(all_runs)

	encoder	merge	mean_tail_mean	std_tail_mean	min_tail_mean	max_tail_mean
0	classical	attention_gate	0.8211	0.0056	0.8149	0.8265
1	classical	he2	0.8205	0.0039	0.8168	0.8259
2	classical	classical	0.8150	0.0060	0.8069	0.8213
3	se	classical	0.8080	0.0050	0.8011	0.8128
4	he2	he2	0.8078	0.0048	0.8018	0.8119
5	he2	attention_gate	0.8065	0.0043	0.8030	0.8124
6	se	he2	0.8055	0.0040	0.8016	0.8095
7	he2	classical	0.8041	0.0039	0.8008	0.8083
8	se	attention_gate	0.8033	0.0034	0.7982	0.8056

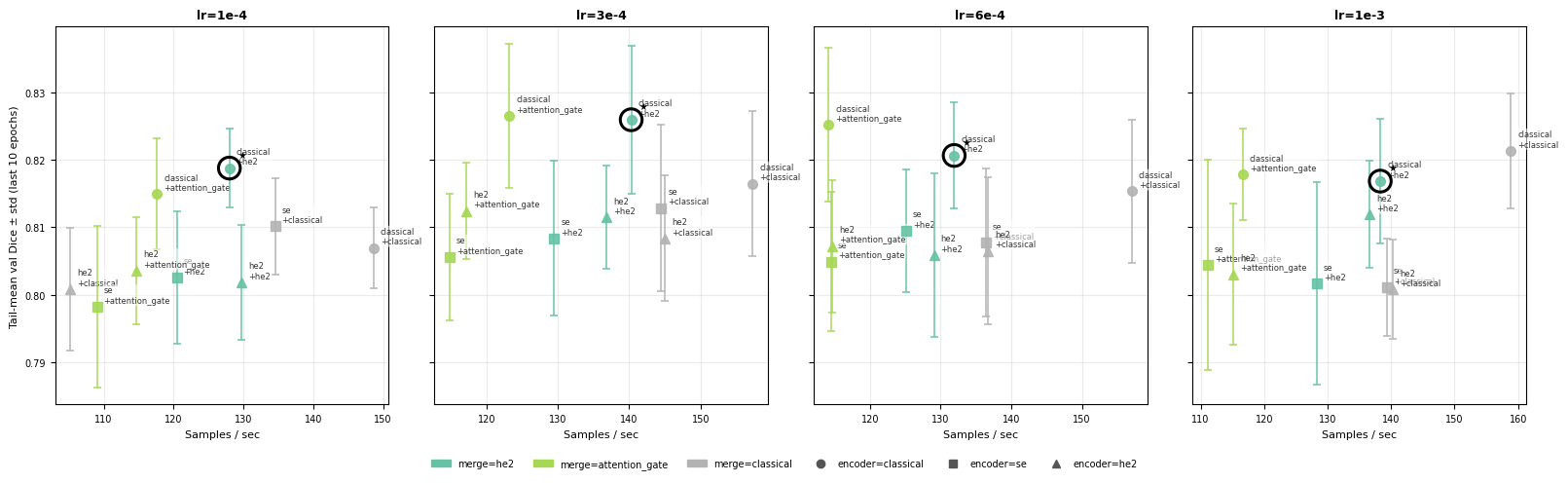

3.7 Throughput vs accuracy frontier

Four panels share the same y-axis — this makes the LR effect directly readable as vertical shifts between panels.

Encoding: colour = merge mode, marker shape = encoder family. Error bars show ±val_dice_tail_std (convergence noise over the last 10 epochs). The ring marks classical+he2 — the recommended architecture.

How to read this:

• Top-right corner of any panel = best accuracy and fastest training.

• The lr=3e-4 panel sits highest overall - it is the best LR for the leading (classical) architectures

• Within that panel, classical+he2 sits furthest right among the high-Dice points - it is the fastest architecture that does not sacrifice Dice.

• classical+attention_gate is the only competitor: slightly higher Dice in this panel, but visibly slower (further left) and with a wider error bar — less stable convergence.

plot_sweep_facet(
    all_runs,
    facet_col='lr',
    facet_order=LR_ORDER,
    y_col='val_dice_tail_mean',
    yerr_col='val_dice_tail_std',
    color_col='merge',
    marker_col='encoder',
    color_order=['he2', 'attention_gate', 'classical'],
    marker_order=['classical', 'se', 'he2'],
    highlight={'encoder': 'classical', 'merge': 'he2', 'label': '★'},
    xlabel='Samples / sec',
    ylabel='Tail-mean val Dice ± std (last 10 epochs)',
)

4. Conclusion

Recommendation: classical encoder + he2 merge at lr=3e-4

criterion	classical+he2	classical+attention_gate	winner
Mean tail-Dice across 4 LRs	0.8205	0.8211	att_gate (+0.0006)
Std tail-Dice across 4 LRs	0.0039	0.0056	he2
Best single-run Dice at lr=3e-4	0.8427	0.8412	he2 (+0.0015)
Tail-mean at lr=3e-4	0.8259	0.8265	att_gate (+0.0006)
Overfitting gap at lr=3e-4	0.078	0.084	he2
Throughput at lr=3e-4	140 sps	123 sps	he2 (+14 %)

classical+attention_gate has a marginal edge on mean and tail-mean Dice (+0.0006) — a difference well within single-seed noise. Against that, classical+he2 wins on every cost and reliability axis: lower cross-LR std (more robust to LR choice), higher peak Dice, lower overfitting, and 14 % faster training. At multi-seed the +0.0006 Dice gap is expected to vanish; the throughput and stability advantages are structural. The multi-seed tie-break is carried out in E2.
