E0 — Batch Size Sweep Analysis — UNet2D on ISIC 2017

Question. What is the optimal per-GPU training batch size for a 2D U-Net on ISIC 2017 on a dual-T4 target?

Design. Two sweeps over bs ∈ {4, 8, 16, 32, 64, 128} (10 epochs each, single GPU): one without augmentation (no_aug) and one with standard training augmentations (with_aug).

Source. mlflow-the-batch-size-sweep-experiment.db + …-augm.db — 12 runs per experiment (1 run × 6 batch sizes), single GPU (fit/devices: 1).

Executive summary

• Sweep: bs ∈ {4, 8, 16, 32, 64, 128}, 10 epochs each, single GPU (T4 16 GB); augmentations on and off

• Selection criterion: smallest bs that simultaneously sits on the throughput plateau, stays compute-bound and saturates the GPU

Metric	bs=4	bs=8	bs=16	bs=32	bs=64	bs=128
Throughput no_aug (sps)	127.2	205.9	167.1	157.2	158.6	146.9
Throughput with_aug (sps)	136.2	213.0	167.9	168.5	166.5	160.4
GPU util no_aug (%)	45	52	77	88	100	94
GPU util with_aug (%)	45	53	80	88	91	100
Peak GPU mem (GB)	0.22	0.39	0.72	1.39	2.74	5.36

Findings:

• Throughput peaks at bs=8 (206 / 213 sps), from bs=16 onward it is flat (∼81 % of peak)

• GPU utilisation first crosses ∼80 % at bs=16

• Peak GPU memory at bs=16: 0.72 GB — well within the 16 GB T4 envelope, ample DDP headroom

• Augmentation overhead at bs=16 is negligible, given data at hand

Decision: freeze ``bs = 16`` for all subsequent experiments.

# ── Imports ──────────────────────────────────────────────────────────────────
import sys; sys.path.insert(0, "/teamspace/studios/this_studio/repos/SkiNet")

import sys
from pathlib import Path

import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
from IPython.display import Markdown, display

from SkiNet.Utils.analysis.batch_sweep import (
    gpu_summary,
    load_experiments,
    recommendation_facts,
    throughput_summary,
)
from SkiNet.Utils.analysis.plotting import (
    plot_empirical_throughput_and_timing,
    plot_gpu_panels,
    plot_loss_curves,
    plot_throughput_traces,
    scatter_outliers,
)
from SkiNet.Utils.analysis.schema import (
    EXPECTED_BATCH_SIZES,
    MAX_EPOCHS_SWEEP,
)

sys.path.insert(0, "/teamspace/studios/this_studio/repos/SkiNet")

# ── Configuration — every tunable argument lives in this cell ────────────────
PROJECT_ROOT = Path("/teamspace/studios/this_studio/repos/SkiNet")

DB_PATHS = {
    "no_aug":   PROJECT_ROOT / "mlflow-the-batch-size-sweep-experiment.db",   # no augmentation
    "with_aug": PROJECT_ROOT / "mlflow-the-batch-size-sweep-experiment-augm.db",  # with augmentation
}
RECOMMENDED_BS = 16  # judgment call — four-criterion rationale in Section 5

# ── Presentation ─────────────────────────────────────────────────────────────
sns.set_theme(context="notebook", style="whitegrid")
plt.rcParams["figure.dpi"] = 110
pd.set_option("display.width", 220)
pd.set_option("display.float_format", "{:.4f}".format)

# ── Load: 12 runs = 2 conditions × 6 batch sizes ─────────────────────────────
DF = load_experiments(DB_PATHS)

Loaded 19723 rows:
                       rows
experiment batch_size
no_aug     4           5000
           8           2500
           16          1250
           32           630
           64           321
           128          160
with_aug   4           5000
           8           2501
           16          1251
           32           630
           64           320
           128          160

1. Data

One row per (experiment, batch_size, step). Key columns:

• ``experiment`` — condition: no_aug (baseline) or with_aug (standard training augmentations applied per-batch)

• ``batch_size`` — per-GPU batch size ∈ {4, 8, 16, 32, 64, 128}

• ``run_uuid`` — MLflow run identifier; one UUID per (experiment, batch_size) run

• ``step`` — optimiser step index within the run (0-based)

• ``samples_per_sec`` — training throughput logged every step, the primary selection signal

• ``time_per_step_ms`` — wall-clock cost per optimiser step

• ``epoch_idx`` — epoch index the step belongs to; used to mark epoch boundaries in the throughput/loss traces

• ``gpu_mem_gb`` — peak allocated GPU memory per step (sampled by pynvml; NaN on steps where the GPU metrics sampler didn’t run on that training step)

• ``gpu_util_pct`` — GPU Streaming Multiprocessor’s utilisation percent per step (sampled by pynvml; NaN on steps where the GPU metrics sampler didn’t run on that training step)

• ``train_loss`` — step-level training loss (for context only)

• ``is_outlier`` — rule-flagged (step 0, epoch boundaries) and IQR-flagged steps excluded from all throughput statistics. See below for the exact detection rules

• ``outlier_reason`` — reason a step was flagged: step0 (warm-up spike), epoch_last_high / epoch_first_low (epoch-boundary artefacts), iqr (two-sided 3× IQR fence), or empty for clean steps

DF.head()

	experiment	batch_size	run_uuid	step	samples_per_sec	time_per_step_ms	epoch_idx	gpu_mem_gb	gpu_util_pct	train_loss	is_outlier	outlier_reason
0	no_aug	32	0684085d224c4f73a2a77ae49a36ca17	0	61.6536	519.0288	0.0000	NaN	NaN	0.9174	True	step0
1	no_aug	32	0684085d224c4f73a2a77ae49a36ca17	1	160.9083	198.8710	0.0000	0.0125	0.0000	0.7916	False
2	no_aug	32	0684085d224c4f73a2a77ae49a36ca17	2	163.4368	195.7943	0.0000	NaN	NaN	0.5656	False
3	no_aug	32	0684085d224c4f73a2a77ae49a36ca17	3	164.1081	194.9935	0.0000	NaN	NaN	0.5126	False
4	no_aug	32	0684085d224c4f73a2a77ae49a36ca17	4	160.0101	199.9874	0.0000	NaN	NaN	0.5818	False

2. Selection methodology

Note that the batch size is treated as a training-speed knob and is not used to optimise the model itself, i.e. is not acting as a tunable hyperparameter (Shallue et al. 2018; Google Deep Learning Tuning Playbook).

2.1 Outlier detection

Before any throughput statistic is computed, every per-step samples_per_sec observation is audited for three known artefacts:

Flag	Rule	Reason
Step0	Any observation at step == 0	CUDA JIT compilation — including cuDNN autotuning on the first-seen input shape as well as the first (cold) data fetch
Epoch boundary	The last and first step of every epoch, flagged unconditionally	The last step of an epoch typically processes the ragged (smaller) final batch and measures fast (epoch_last_high); the first step of the next epoch absorbs the re-shuffle and DataLoader restart and measures slow (epoch_first_low). Neither reflects steady-state throughput
IQR	samples_per_sec < Q1 − 3 x IQR or > Q3 + 3 x IQR within each (experiment, batch_size) run, applied to steps that survived the two rule-based flags	1) Fast steps: The DataLoader prefetched the next batch before the GPU finished the previous step, so the measured elapsed time interval excludes data-wait time and throughput spikes (upward dataloader jitter) 2) Slow steps: - GPU waiting because prefetch didn’t finish in time (downward dataloader jitter); - The caching GPU memory allocator can’t serve a tensor from its reserved memory pool (early in a run while the pool is still growing to its steady-state size or when the pool is near the memory ceiling)

Steps matching any flag are marked is_outlier = True and excluded from all downstream statistics. Factors considered and ruled out for this single-T4, fixed-shape-images setup:

• L2/DRAM cache re-use across steps — cannot produce an outlier, because cache is only 4MB for T4 GPU and each step streams hundreds of MB of activations through it

• Linux CFS scheduler jitter (~1–10 ms preemption mid-step) — < 10% for batch sizes > 16 and above 100 ms per step

• PCIe contention — only possible if the second T4 runs a concurrent job sharing the same PCIe root complex / host bus

• cuDNN re-autotuning on shape change — ruled out: ISIC2017 inputs are cropped to a fixed size, so autotune fires once at step 0 (already dropped) and never recurs.

2.2 Selection rules

After omitting outliers, the batch size is selected using the following criteria:

#	Criterion	Operational definition
1	Throughput plateau	Median samples_per_sec stops climbing as batch_size increases
2	Compute-bound regime	Compute-bound regime entry — the smallest batch size from which median time_per_step_ms scales linearly with batch size
3	GPU saturation	The onset of median gpu_util_pct >= 80 %

The batch_size should also be large enough for stable gradient estimates.

2.3 Augmentation conditions

The sweep is run under two conditions to confirm augmentations do not shift the optimal batch size:

• ``no_aug`` — raw images and masks; no transforms beyond resize and normalisation.

• ``with_aug`` — standard training augmentations (horizontal/vertical flip, rotation, colour jitter).

3. Results

3.1 Outlier audit

Before any throughput statistic, every step is audited in the two passes defined in §2.1: the rule-based pass unconditionally drops step 0 and the epoch-boundary steps (epoch_last_high / epoch_first_low); the statistical pass then drops surviving steps whose samples_per_sec falls outside the two-sided 3× IQR fence (below Q1 − 3×IQR or above Q3 + 3×IQR) within each run.

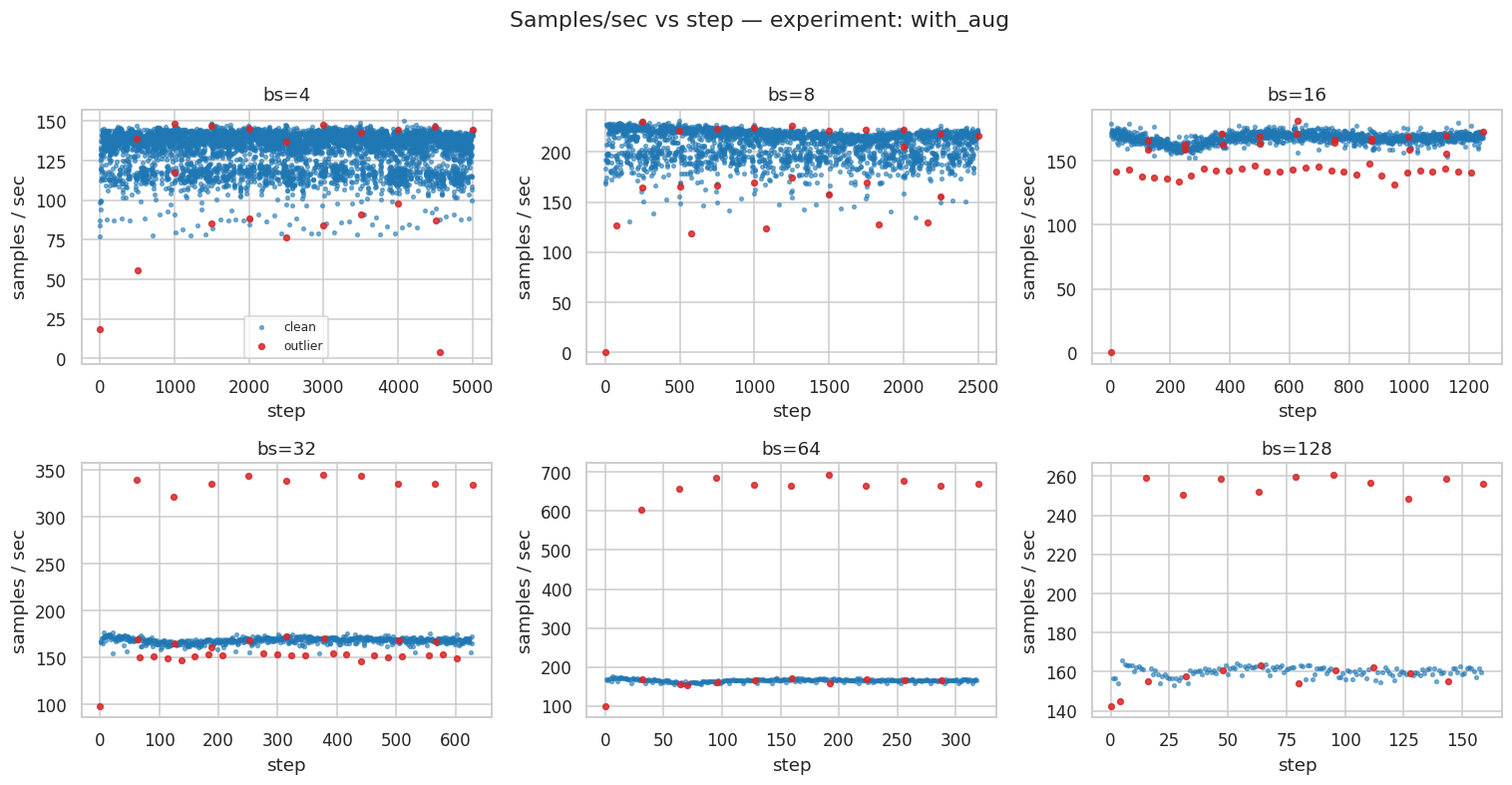

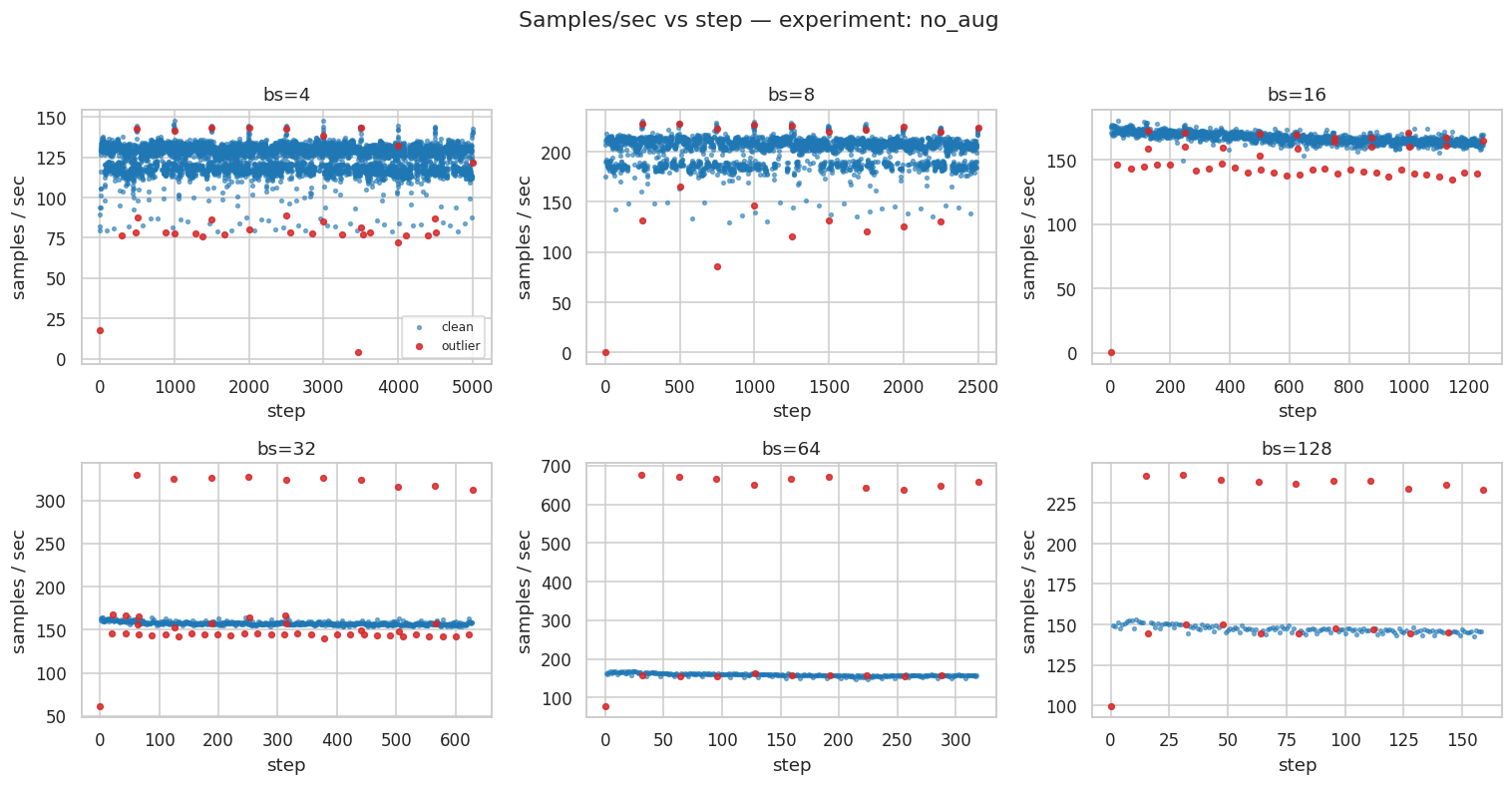

• ``samples_per_sec`` vs step: The step-0 spike is visible at the left edge of every series; IQR outliers appear as isolated points above or below the main cloud

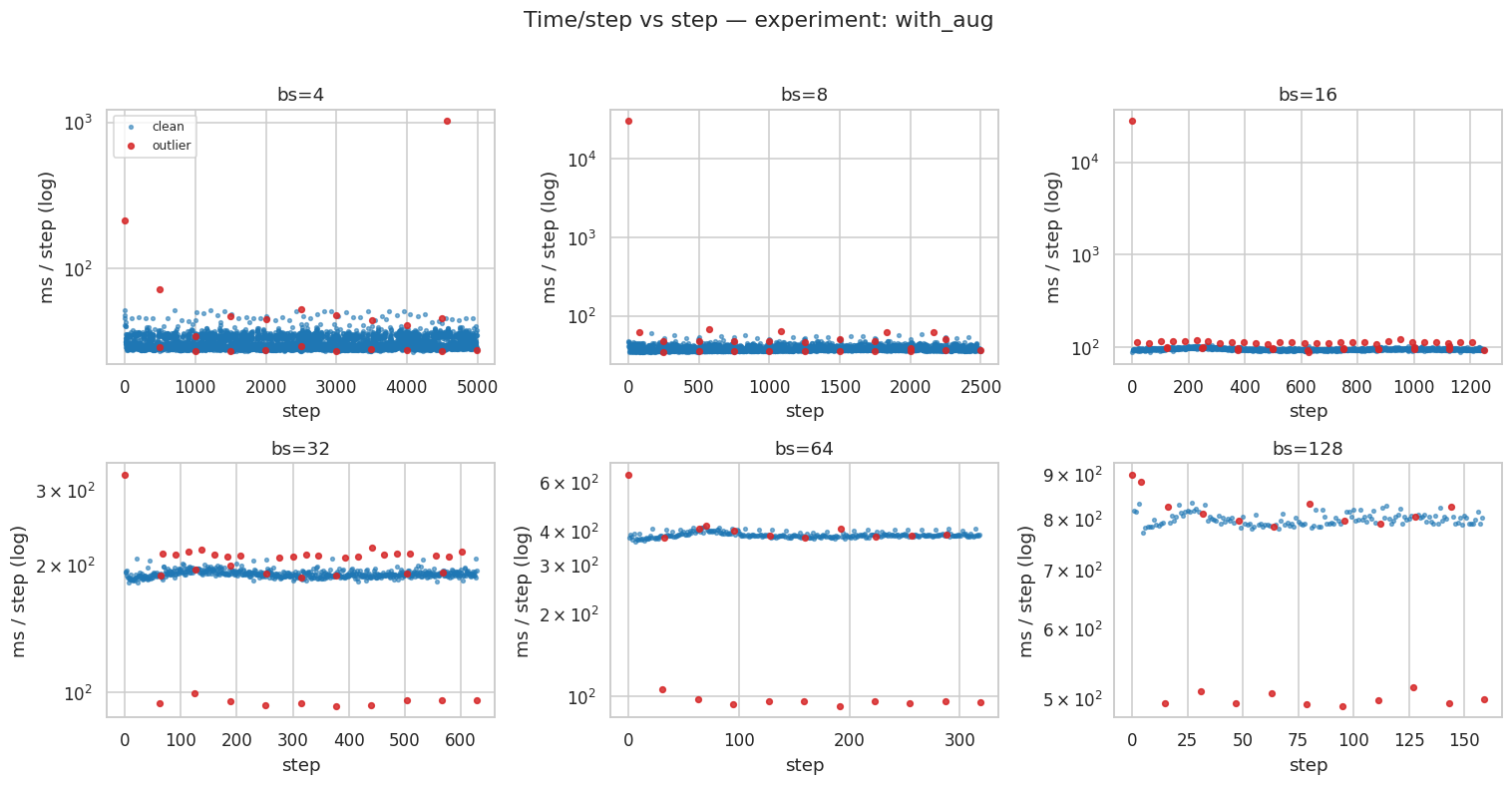

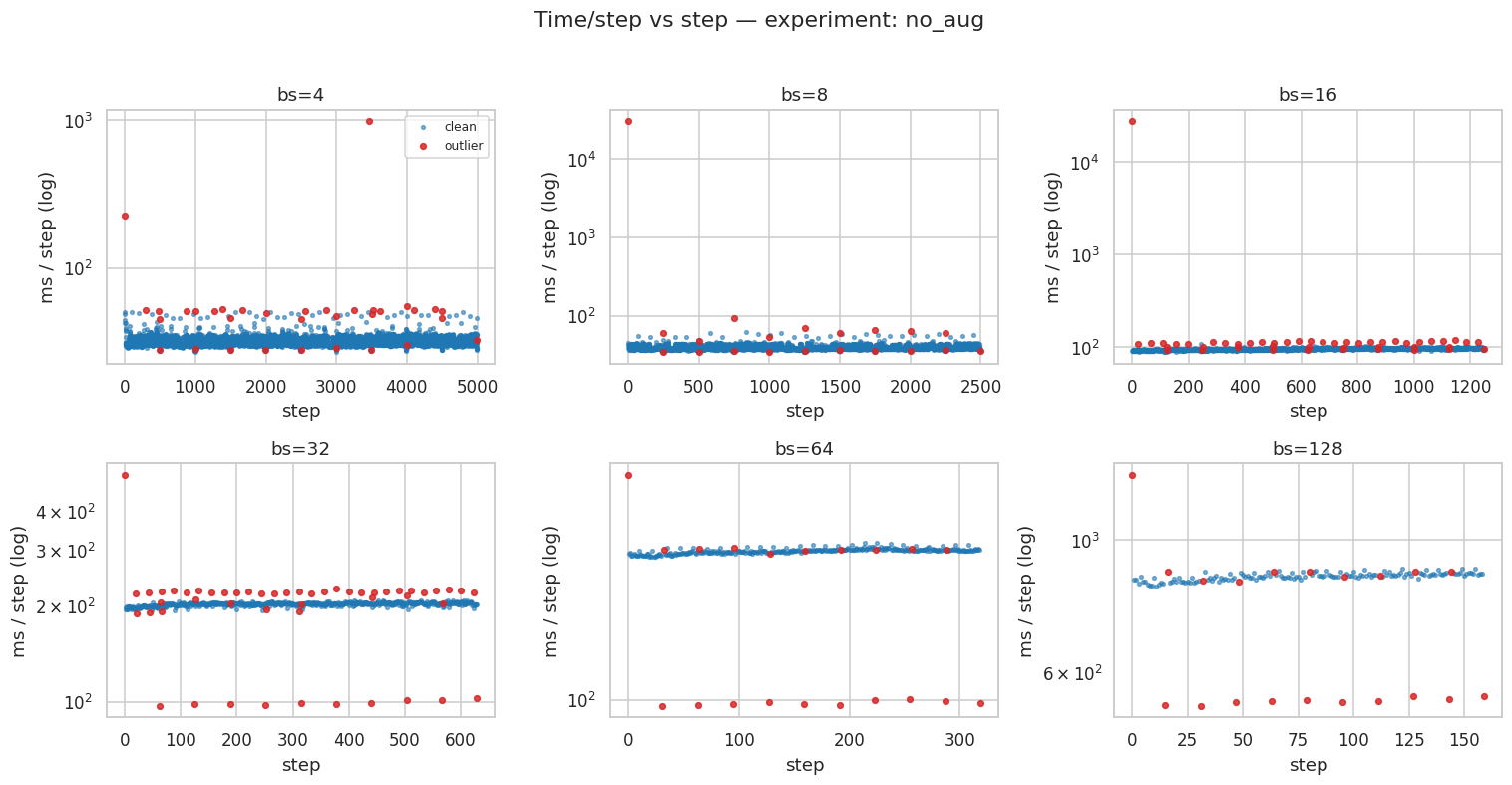

• ``time_per_step_ms`` vs step: Step 0 is visible as an isolated slow point

for exp in ["no_aug", "with_aug"]:
    df_exp = DF[DF["experiment"] == exp]
    scatter_outliers(df_exp, "samples_per_sec",
                     f"Samples/sec vs step — experiment: {exp}",
                     "samples / sec",
                     batch_sizes=EXPECTED_BATCH_SIZES)
    scatter_outliers(df_exp, "time_per_step_ms",
                     f"Time/step vs step — experiment: {exp}",
                     "ms / step (log)",
                     batch_sizes=EXPECTED_BATCH_SIZES,
                     ylog=True)

3.2 Throughput

SUMMARY aggregates clean (non-outlier) steps per (experiment, batch_size) into three robust percentiles:

• ``median_samples_per_sec`` — the primary throughput estimate; used for all inter-batch-size comparisons (criterion 1 in §2.2).

• ``p10_samples_per_sec`` / ``p90_samples_per_sec`` — the 10th and 90th percentiles, capturing the steady-state low and high. A narrow p10–p90 band indicates stable throughput; a wide band suggests measurement noise or CPU–GPU pipeline jitter.

• ``median_time_per_step_ms`` — used for the compute-bound inflection check (criterion 2 in §2.2).

SUMMARY = throughput_summary(DF)
SUMMARY

	experiment	batch_size	p10	median	p90	median_time_per_step_ms	n_clean	n_outliers
0	no_aug	4	114.9768	127.2376	132.7930	31.4372	4966	34
1	no_aug	8	183.3744	205.9562	213.4951	38.8432	2480	20
2	no_aug	16	162.2815	167.0686	172.3774	95.7690	1203	47
3	no_aug	32	155.5903	157.2350	160.3541	203.5170	579	51
4	no_aug	64	154.6391	158.5980	163.8240	403.5361	300	21
5	no_aug	128	144.7734	146.9285	150.4072	871.1722	140	20
6	with_aug	4	113.7247	136.2342	142.6829	29.3612	4979	21
7	with_aug	8	186.9750	213.0299	222.6210	37.5534	2475	26
8	with_aug	16	161.9203	167.9255	172.4826	95.2804	1201	50
9	with_aug	32	164.0205	168.4691	171.7321	189.9458	591	39
10	with_aug	64	160.1931	166.4801	169.4269	384.4302	299	21
11	with_aug	128	156.4981	160.3980	163.0021	798.0147	139	21

• From the graphs below, it is seen that the throughput flattens starting from batch = 16 (the peak is at batch = 8)

• Time per step is doubling with the batch size starting from batch = 16, while staying roughly constant at batch sizes 4 and 8 (GPU sits at 45–52 % utilisation as you will see below, so step time is dominated by fixed per-step overhead like kernel launches, dataloader handoff, logging). The jump from about 40 ms (batch size = 8) to almost 100 ms per step (batch size = 16) is a crossover from sub-linear (overhead-bound) to linear (compute-bound)

fig = plot_empirical_throughput_and_timing(SUMMARY, batch_sizes=EXPECTED_BATCH_SIZES)

---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
File /home/zeus/miniconda3/envs/cloudspace/lib/python3.12/site-packages/pandas/core/indexes/base.py:3791, in Index.get_loc(self, key)
   3790 try:
-> 3791     return self._engine.get_loc(casted_key)
   3792 except KeyError as err:

File index.pyx:152, in pandas._libs.index.IndexEngine.get_loc()

File index.pyx:181, in pandas._libs.index.IndexEngine.get_loc()

File pandas/_libs/hashtable_class_helper.pxi:7080, in pandas._libs.hashtable.PyObjectHashTable.get_item()

File pandas/_libs/hashtable_class_helper.pxi:7088, in pandas._libs.hashtable.PyObjectHashTable.get_item()

KeyError: 'median_samples_per_sec'

The above exception was the direct cause of the following exception:

KeyError                                  Traceback (most recent call last)
Cell In[6], line 1
----> 1 fig = plot_empirical_throughput_and_timing(SUMMARY, batch_sizes=EXPECTED_BATCH_SIZES)

File ~/repos/SkiNet/SkiNet/Utils/analysis/plotting.py:933, in plot_empirical_throughput_and_timing(summary, batch_sizes)
    931 g = summary[summary["experiment"] == exp].set_index("batch_size").reindex(bs_grid)
    932 x = np.arange(len(bs_grid)) + (i - (len(experiments) - 1) / 2) * width
--> 933 med = g["median_samples_per_sec"].values
    934 err_lo = med - g["p10_samples_per_sec"].values
    935 err_hi = g["p90_samples_per_sec"].values - med

File /home/zeus/miniconda3/envs/cloudspace/lib/python3.12/site-packages/pandas/core/frame.py:3893, in DataFrame.__getitem__(self, key)
   3891 if self.columns.nlevels > 1:
   3892     return self._getitem_multilevel(key)
-> 3893 indexer = self.columns.get_loc(key)
   3894 if is_integer(indexer):
   3895     indexer = [indexer]

File /home/zeus/miniconda3/envs/cloudspace/lib/python3.12/site-packages/pandas/core/indexes/base.py:3798, in Index.get_loc(self, key)
   3793     if isinstance(casted_key, slice) or (
   3794         isinstance(casted_key, abc.Iterable)
   3795         and any(isinstance(x, slice) for x in casted_key)
   3796     ):
   3797         raise InvalidIndexError(key)
-> 3798     raise KeyError(key) from err
   3799 except TypeError:
   3800     # If we have a listlike key, _check_indexing_error will raise
   3801     #  InvalidIndexError. Otherwise we fall through and re-raise
   3802     #  the TypeError.
   3803     self._check_indexing_error(key)

KeyError: 'median_samples_per_sec'

3.3 Throughput stability

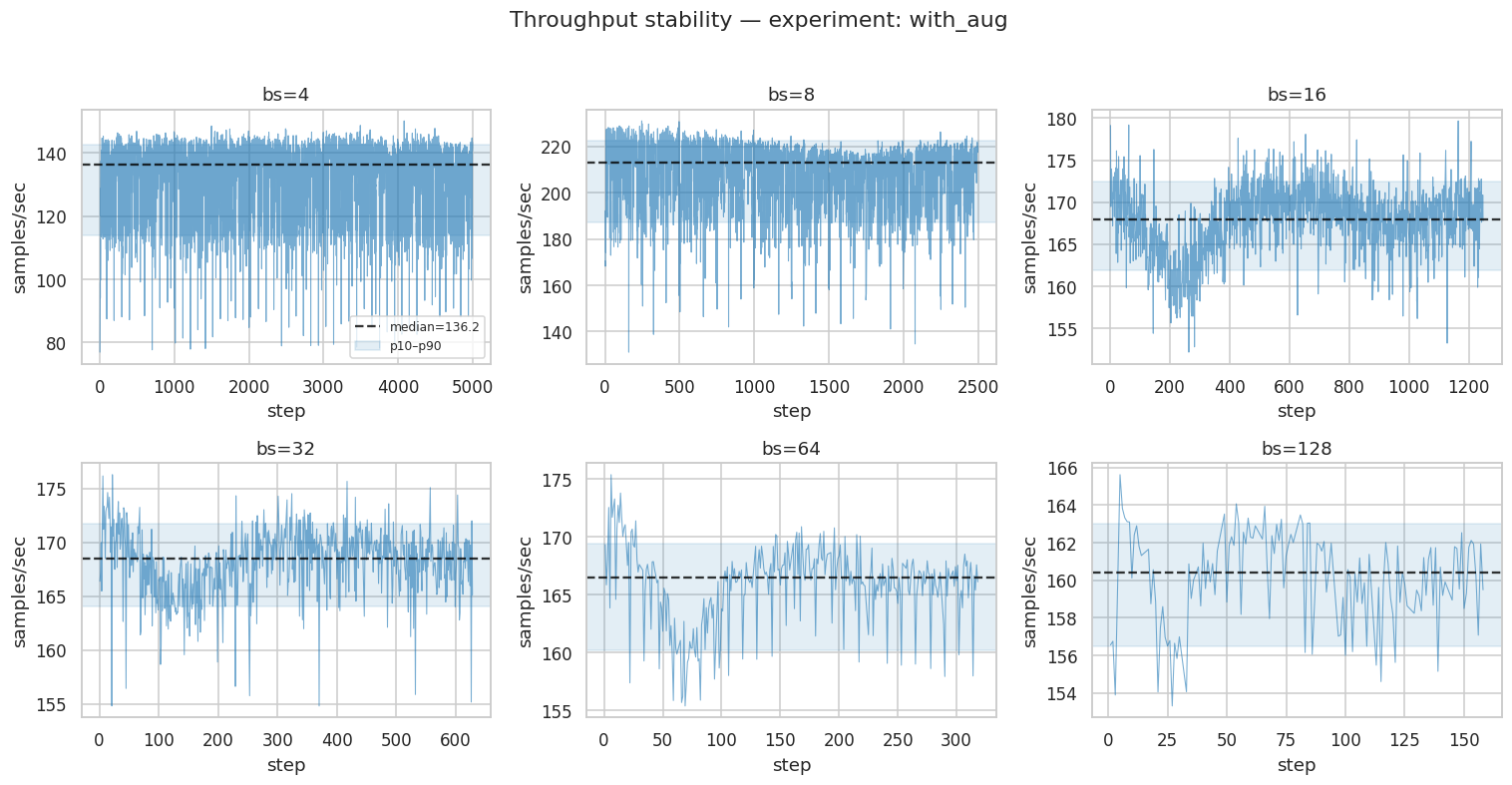

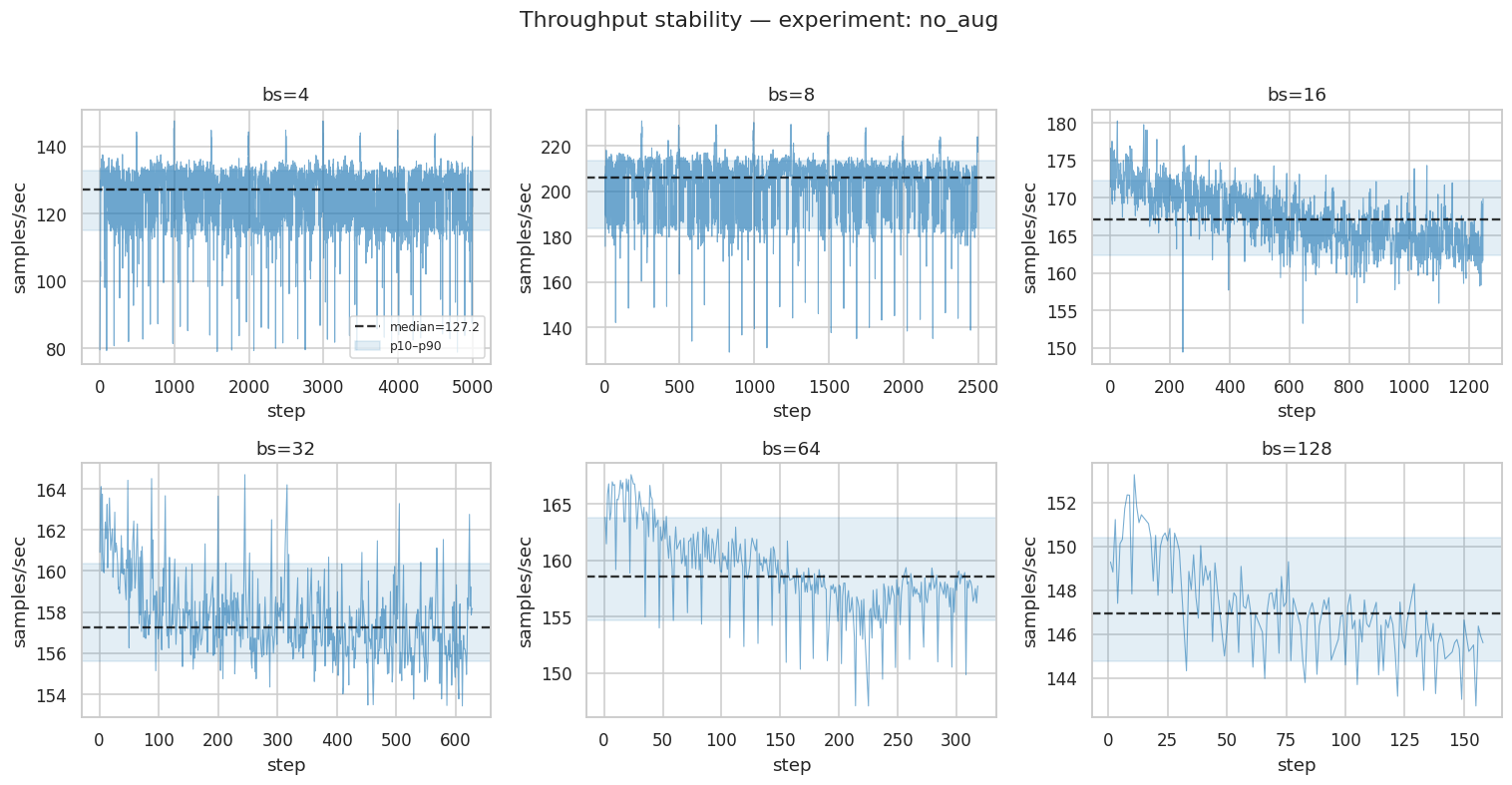

Troughout traces — samples_per_sec over training steps for each batch size within a condition, with outliers. Each trace is a single run; dashed lines mark epoch boundaries.

What to look for:

• Stability — traces should be flat after the first few steps (warm-up). High variance later in training indicates DataLoader jitter or thermal throttling.

• Ordering — traces should be rank-ordered consistently with the bar-chart medians above

• Epoch boundaries — brief throughput dips at epoch boundaries (data re-shuffle + DataLoader restart) are expected; the rule-based pass flags these steps unconditionally (epoch_last_high / epoch_first_low) and excludes them from all statistics.

for exp in ["no_aug", "with_aug"]:
    plot_throughput_traces(DF, exp, batch_sizes=EXPECTED_BATCH_SIZES, max_epochs=MAX_EPOCHS_SWEEP)

Observed (against the three expectations above):

• Stability — means are stationary, but the variance pattern differs from the expectation: noise is largest at bs=4–8 and persistent from the first step (downward spikes to ~130–140 sps at bs=8) which is a steady DataLoader jitter. The compute-bound runs instead start fast and decay: bs=16 no_aug drifts ≈172 → ≈165 sps over the run; bs=128 holds ≈151–153 sps for its first ~30 steps before settling at ≈146–147. That is a thermal signature (a cool GPU boosts clocks, then throttles the clock down) and it appears only in the batch sizes where GPU compute speed is the limiting factor for how long each step takes.

• Ordering — holds as per bar plots above

• Epoch boundaries — not separable by eye: at bs=4–8 the downward spikes occur far more often than once per epoch (≈250 steps/epoch at bs=8)

• Impact on the decision — the ~3–5 % thermal drift flatters early-run throughput equally across the compute-bound sizes, so the ranking and the bs=16 choice are unaffected.

3.3 GPU utilisation & memory

Per-step gpu_util_pct and gpu_mem_gb aggregated to median (utilisation) and peak (memory) per (experiment, batch_size).

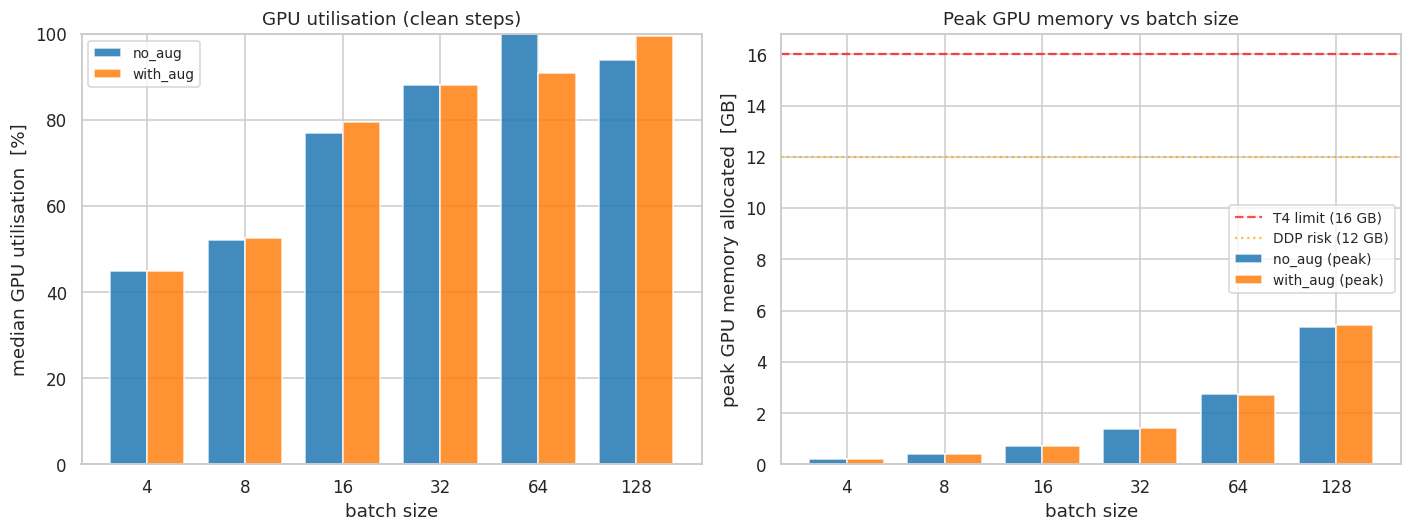

Utilisation (``gpu_util_pct``) tracks whether the GPU compute engines or the DataLoader pipeline is the throughput bottleneck at each batch size (criterion 3 in §2.2):

• Below ~50 %: the GPU is idle while waiting for data — increasing batch_size amortises per-sample DataLoader overhead and raises utilisation.

• 50 %–80 %: transitional zone; both CPU pipeline and GPU contribute to the bottleneck.

• ≥ 80 %: the GPU is genuinely saturated — the bottleneck has shifted to compute, which is the intended training regime. Further increases in batch_size yield diminishing utilisation returns.

Memory (``gpu_mem_gb``) is checked against the 16 GB T4 envelope. The DDP viability check requires that peak memory at the recommended bs leaves room for:

• DDP gradient buckets (~100–200 MB for a U-Net at this scale)

• Activation memory from the forward pass (scales roughly linearly with batch_size)

• Framework overhead and CUDA context (~300–500 MB fixed)

A peak memory of ≤ 6–7 GB at the recommended bs provides comfortable DDP headroom; the run can be doubled to 2× T4 without OOM risk.

GPU_TBL = gpu_summary(DF)
display(GPU_TBL)
plot_gpu_panels(GPU_TBL, batch_sizes=EXPECTED_BATCH_SIZES)

	experiment	batch_size	median_gpu_util_pct	median_gpu_mem_gb	peak_gpu_mem_gb
0	no_aug	4	45.0000	0.0536	0.2203
1	no_aug	8	52.0000	0.0569	0.3894
2	no_aug	16	77.0000	0.0631	0.7220
3	no_aug	32	88.0000	0.0778	1.3854
4	no_aug	64	100.0000	0.1018	2.7408
5	no_aug	128	94.0000	0.1523	5.3634
6	with_aug	4	45.0000	0.0536	0.2222
7	with_aug	8	52.5000	0.0569	0.3933
8	with_aug	16	79.5000	0.0631	0.7220
9	with_aug	32	88.0000	0.0778	1.4004
10	with_aug	64	91.0000	0.1016	2.7104
11	with_aug	128	99.5000	0.1531	5.4246

Observed:

• Utilisation — stalls at 45–53 % across the overhead-bound sizes (bs=4–8), then first reaches the ≥ 80 % saturation criterion at bs=16 and stays saturated beyond (88–100 %) — consistent with bs=16 being the entry point of the compute-bound regime seen in the time-per-step data.

• Memory — peak allocation roughly doubles with batch size, i.e. activations dominate the footprint; at bs=16 the 0.72 GB peak leaves some 15 GB of the T4 envelope free — ample headroom for DDP buckets and pytorch framework overhead.

3.4 Loss convergence (context only)

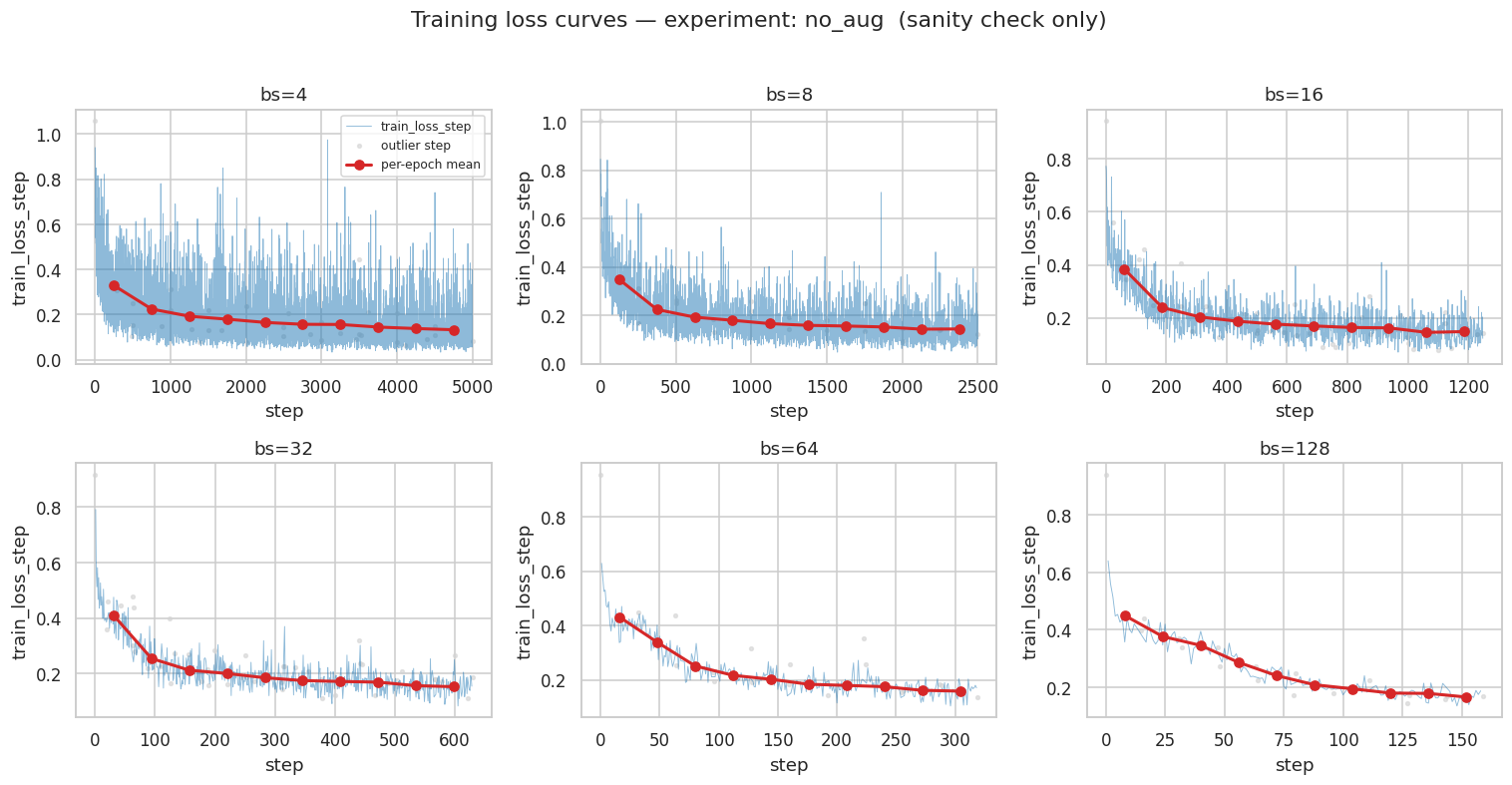

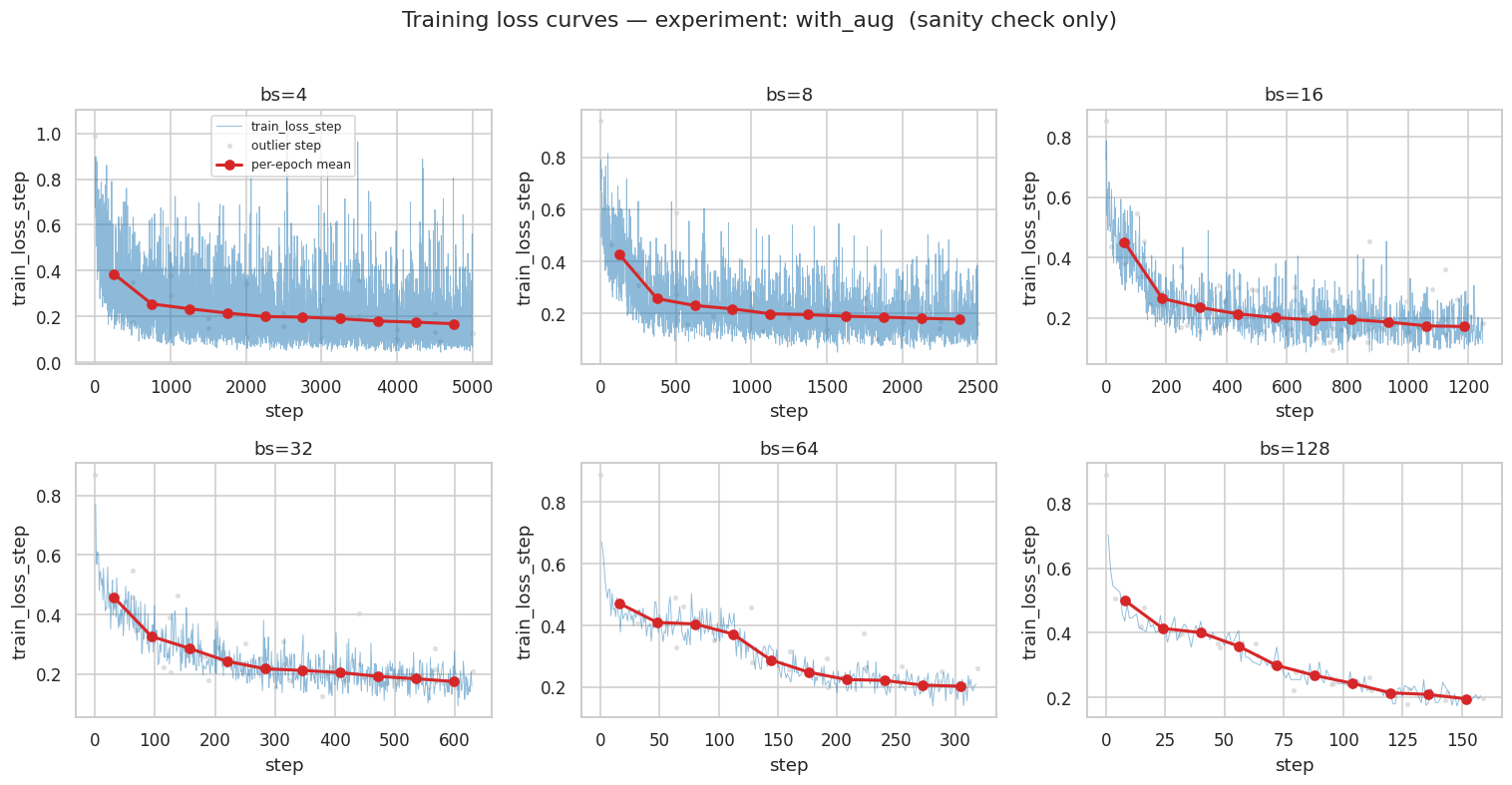

Step-level train_loss per batch size, shown for sanity checking only

for exp in ["no_aug", "with_aug"]:
    plot_loss_curves(DF, exp, batch_sizes=EXPECTED_BATCH_SIZES, max_epochs=MAX_EPOCHS_SWEEP)

4. Conclusion

# ── Facts: every number the recommendation prose needs, in one dict ─────────
FACTS = recommendation_facts(SUMMARY, GPU_TBL, RECOMMENDED_BS)

def _fmt(x):
    if x is None or (isinstance(x, float) and x != x):  # None or NaN
        return "n/a"
    return f"{x}"


bs_rec      = FACTS["recommended_bs"]
per_exp     = FACTS["per_exp"]
peak_no_sps = per_exp["no_aug"]["peak_median_sps"]
peak_aug_sps= per_exp["with_aug"]["peak_median_sps"]
peak_no_bs  = per_exp["no_aug"]["peak_bs"]
sps_rec_no  = per_exp["no_aug"]["median_at_recommended_sps"]
sps_rec_aug = per_exp["with_aug"]["median_at_recommended_sps"]
util_no     = FACTS["gpu_util_at_recommended"].get("no_aug")
util_aug    = FACTS["gpu_util_at_recommended"].get("with_aug")
peak_mem    = FACTS["gpu_mem"].get(bs_rec)
aug_pen     = FACTS.get("aug_penalty_pct_at_recommended")

display(Markdown(f"""
### Recommended batch size: **bs = {bs_rec}**

#### 1. Throughput plateau
Throughput peaks at bs={peak_no_bs} ({_fmt(peak_no_sps)} / {_fmt(peak_aug_sps)} sps no_aug / with_aug),
then settles onto a flat plateau from bs={bs_rec} onward ({_fmt(sps_rec_no)} / {_fmt(sps_rec_aug)} sps,  about 80 % of peak).

#### 2. Compute-bound entry
Median time-per-step is nearly flat from bs=4 to 8 (×1.2–1.3 per doubling — overhead-bound),
jumps ×2.5 at 8→16 (the crossover), and scales linearly (≈×2 per doubling) from bs=16 onward.
bs={bs_rec} is the smallest batch inside the compute-bound regime.

#### 3. GPU saturation
Median utilisation first reaches ~80 % at bs={bs_rec} ({_fmt(util_no)} % / {_fmt(util_aug)} %) and
stays at 88–100 % beyond; at bs=4–8 the GPU idles at 45–53 % waiting on the DataLoader.

#### Memory headroom for DDP
Peak `gpu_mem_gb` at bs={bs_rec} is **{_fmt(peak_mem)} GB** — under 5 % of the 16 GB T4 envelope,
ample room for DDP buckets and framework overhead.

#### Augmentation effect
Throughput cost of augmentations at bs={bs_rec}: **{_fmt(aug_pen)} %** — augmentations do
*not* shift the optimal batch size on this hardware."""))

Recommended batch size: bs = 16

1. Throughput plateau

Throughput peaks at bs=8 (205.96 / 213.03 sps no_aug / with_aug), then settles onto a flat plateau from bs=16 onward (167.07 / 167.93 sps, about 80 % of peak).

2. Compute-bound entry

Median time-per-step is nearly flat from bs=4 to 8 (×1.2–1.3 per doubling — overhead-bound), jumps ×2.5 at 8→16 (the crossover), and scales linearly (≈×2 per doubling) from bs=16 onward. bs=16 is the smallest batch inside the compute-bound regime.

3. GPU saturation

Median utilisation first reaches ~80 % at bs=16 (77.0 % / 79.5 %) and stays at 88–100 % beyond; at bs=4–8 the GPU idles at 45–53 % waiting on the DataLoader.

Memory headroom for DDP

Peak gpu_mem_gb at bs=16 is 0.72 GB — under 5 % of the 16 GB T4 envelope, ample room for DDP buckets and framework overhead.

Augmentation effect

Throughput cost of augmentations at bs=16: -0.51 % — augmentations do not shift the optimal batch size on this hardware.
